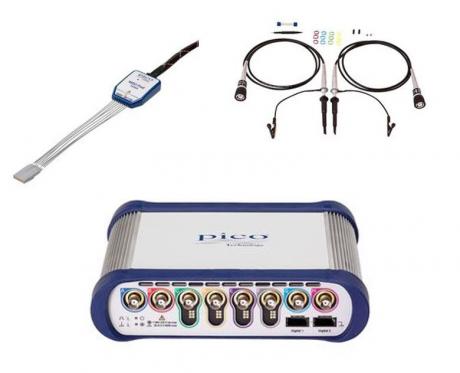

USB-oscilloskoper med ultradyb hukommelse
Farnell kan nu levere Pico Technology's nye 6000E serie af USB-oscilloskoper med hukommelser, der kan rumme op til 2 giga sample/s per kanal (in english).
Farnellhas added the new PicoScope 6000E series of USB oscilloscopes from Pico Technology to its portfolio. The new generation PicoScope 6000E series is an ideal measurement and analysis solution for design and test engineers, original equipment manufacturers, contract electronics manufacturers working with high-performance embedded systems, and researchers and scientists working on multi-channel high-performance experiments in physics labs, particle accelerators and similar facilities.As a market leading developer of PC oscilloscopes, Pico provides innovative and cost-effective alternatives to traditional test equipment and data acquisition products. Pico’s regular and free software updates future-proof products by continuously improving performance and extending operational life.
The new PicoScope 6000E series delivers:
• Eight analog input channels with 8-bit resolution and up to 5GS/s sampling rate.
• Ultra-Deep Memory waveform capturing memories of 4 giga samples (up to 2 giga samples per channel), many times larger than competing oscilloscopes and enabling the capture of long-duration waveforms at maximum sampling speed.
• Mixed-Signal Oscilloscope (MSO) option adding 8 or 16 500MHz digital channels when optional 8-bit TA369 MSO pods are fitted, allowing digital and analogue signals to be viewed together. Digital signals can be displayed individually, as a bus or as decoded serial protocols.
• 21 serial protocol decoders included as standard allowing serial data to be decoded simultaneously on all analogue and digital channels. This enables up to 24 channels of data, including decoding multiple SPI, I²C, CAN bus, LIN bus and FlexRay signals, to be done at the same time.
• SuperSpeed USB 3.0 interface and hardware acceleration ensures that the display is smooth and responsive even with long data captures.
