SMARC 2.0 moduler til energieffektive IoT-applikationer
Med sigte på energieffektive IoT-applikationer lancerer MSC Technologies præsenterer kompakte SMARC 2.0 moduler med processorer fra Intel Atom E3900 serien (in english).

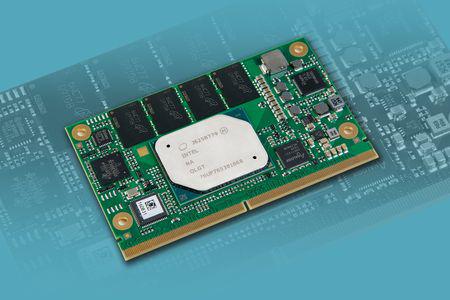

MSC Technologies presents the MSC SM2S-AL SMARC 2.0 module family in 82 x 50 mm short-size format, which features a low power dissipation of 7 – 14 W at high speed. The compact platform integrates the recent Intel Atom E3900 processor series or alternatively Pentium- and Celeron processors.The cost-optimized modules are best suited for energy-efficient applications, like the Internet of Things (IoT), smart factory automation, medical, building automation, and digital signage. Single MSC SM2S-AL variants are specified for use in extended operating temperature range of -40 to +85 °C.
The MSC SM2S-AL SMARC 2.0 module family is populated with up to 8 GB high bandwidth quad-channel LPDDR4 SDRAM. Optionally, an eMMC Flash storage device offering up to 64 GB is available. The modules support the connection of three independent displays via DisplayPort++ and LVDS/embedded DisplayPort (eDP). The short-size modules have Gigabit Ethernet, PCI Express, SATA III, and a MIPI CSI-2 camera interface.
MSC Technologies’ energy-efficient MSC SM2S-AL modules integrate the Intel Atom processors E3950 (quad-core, 1.6/2.0GHz, 12 W), E3940 (quad-core, 1.6/1.8 GHz, 9.5 W), E3930 (dual-core, 1.3/1.8 GHz, 6,5 W), and the quad-core Intel Pentium N4200 (1.1/2.5 GHz Burst, 6 W) or dual-core Intel Celeron N3350 (1.1/2.3 GHz Burst, 6 W).
The on-chip Intel Gen 9 HD Graphics offers significantly improved graphics functionality and supports DirectX 12, OpenGL 4.3 and OpenCL 2.0. For improved security, MSC Technologies optionally integrates a Trusted Platform Module (TPM) according to the TCG (Trusted Computing Group) onto the board.
For evaluation and quick design-in of the SMARC 2.0 modules, an evaluation platform and ready-to-use starter kits can be ordered.
About MSC Technologies
MSC Technologies, a company of Avnet, Inc. , specialises in intelligent embedded and display solutions for a range of different industrial applications. MSC Technologies, based in Stutensee, Germany, represents well-known manufacturers of TFT, touch and passive displays and offers customer-specific display solutions based on in-house technologies. In the embedded sector,
MSC Technologies has many years of development and production expertise that ranges from COM Express, Qseven and SMARC 2.0 modules through to complete systems. It also provides wireless, storage and lighting solutions. With its consulting competence and full-service offering, MSC Technologies secures a competitive advantage for its customers with premium-quality solutions and long-term availability. The solution provider’s business focuses on Germany, Austria, Switzerland, Spain and Eastern Europe. Avnet Embedded serves customers in other regions.
