Kompakt industri PC til edge/gateway applikationer

Kontron lancerer KBox A-251-AML/ADN, der er en særdeles kompakt industriel PC, som er bygget op omkring de nye Intel Atom x7000RE processorer (in english).

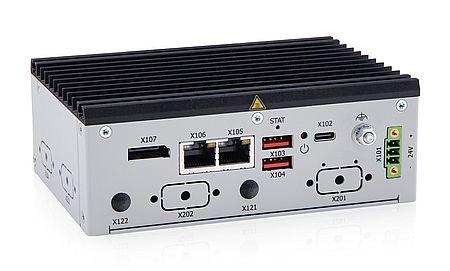

Kontron, a leading global provider of IoT/Embedded Computer Technology (ECT), introduces the new KBox A-251-AML/ADN, an extremely compact industrial PC based on the new Intel Atom x7000RE processors, Intel N97 or Core i3-N305 processors.

By integrating these new Intel processors, the industrial PC offers a future-oriented platform for applications in demanding industrial environments. Another special feature of the system is the so-called 'IO Door', which can be used to offer a variety of additional interfaces.

The industrial-grade KBox A-251-AML/ADN was specially designed for demanding IoT gateway applications in an industrial environment. At the heart of the industrial PC are the latest generation processors from the Intel Atom X7000, Intel N and Intel Core i3 N series with up to eight cores and a maximum of 16 GB DDR5 memory.

These processors are characterized by high energy efficiency and impressive computing power and thus form the basis for demanding real-time applications, machine learning or the processing of large amounts of data. Thanks to the compact system design of just 137 x 50 x 95 mm, which is based on a 2.5” Single Board Computer, the industrial PC is also suitable for applications in which space plays a decisive role.

In addition to a DisplayPort and two 2.5GbE interfaces, the new KBox A-251-AML/ADN also has three USB 3.2 ports, including a USB-C port, as well as a USB 2.0 port and an RS232 serial interface. The KBox A-251-AML/ADN can be expanded with a wide range of functionalities using the two internal M.2 expansion slots, enabling the integration of SSDs, fieldbuses, and wireless technologies such as 4G/5G or WiFi 6 connectivity.

The special feature of this industrial PC is the newly created IO door on the left-hand side of the system, providing access to a variety of additional interfaces. For example, serial or LAN ports, fieldbuses or digital IOs can be integrated and made available to the customer on request.

The fanless, robust system design guarantees an extended service life and high system availability, even in harsh industrial environments. The KBox A-251-AML/ADN can be operated in the range from 0 °C to +60 °C or optionally also in the extended temperature range between -40 °C and +60 °C.

To meet the increased cyber security requirements, Kontron offers the hardened and secure Linux-based operating system KontronOS as well as the fleet management solution KontronGrid for the administration and simplified roll-out of container applications on edge devices.

First samples of the new KBox A-251-AML/ADN will be available from February 2025.
