PC til montering på DIN-skinne
ICOP tilbyder gennem Texim en højt ydende og energieffektiv DIN-skinne PC med 933 MHz CPU (in english).

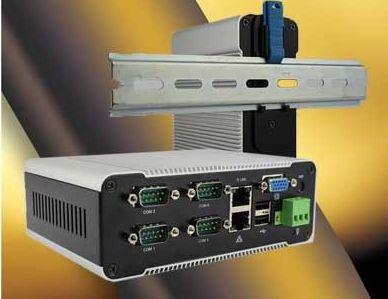

The DIN PC-3330 from ICOP is a DIN rail mountable fanless embedded PC which provides a perfect balance between performance and energy efficiency. The DIN PC-3330 is featured with a ultralow power 933MHz Vortex86DX2 CPU, onboard DDR2 RAM, ethernet and various I/O ports.The PC supports operating systems such as Microsoft windows embedded and Linux OS. Users can integrate applications easily with a platform that provides a versatile of functions but also fulfill diverse requirements.
The DIN rail form factor provides space-saving and facilitates easy wiring solutions. This makes the PC-3330 ideal as an embedded controllers for industrial applications.
Features
• DIN rail mounting support
• Vortex86DX2 (933MHz)
• Onboard 1GB DDR2
• PXE diskless boot
• 10/100 Mbps LAN x 1
• 1Gbps LAN x 1
• USB V2.0 port x 3 (external x 2 / internal x 1)
• SD, SDHC support (internal)
• SATA DOM support (internal)
• Auto power on support
• Pluggable terminal block 3-pin 5.00 mm pitch
• Product longevity up to 10 years
Optional
• RS-232 up to 2 ports
• RS-485 up to 2 ports
• RS-422 up to 2 ports
• WiFi dongle support
Texim Europe B.V.
www.texim-europe.dk
nordic@texim-europe.com
Telefon: +45 8820 2632
