Panel pc kan udvides med plug-and-play moduler

Texim Europe kan nu tilbyde AAEON's nye OMNI-2155, hvis funktionalitet og HMI kan udvides med brug af forskellige plug-and-play moduler (in english).

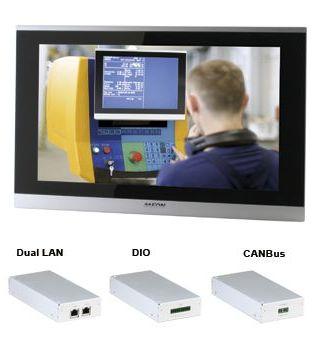

The OMNI-2155 from AAEON Technology is an industrial HMI expandable panel PC. The OMNI-2155 shortens the lead time by adopting a plug-and-play modular design. This approach not only makes customization and expansion much easier, it enables the device to be NRE free, hence driving the overall cost down.

Customizable panels PCs often involve stripping the systems down to its individual components and reassembling it to its requested specifications. The OMNI-2155 adopts a modular design making the customization process as easy as building LEGO toy bricks.

The panel accomplishes this with a simple connector on the main CPU box, which houses the CPU as well as other essential components on the rear of the panel. Dubbed the 'OMNI- slot', each OMNI module is connected to the CPU box through this slot. A total of eight modules are currently available (see the overview below).

The OMNI-2155 itself is a 15.6" device supporting a 16:9 PCAP touchscreen with a full aluminum chassis that offers wider operating temperature and superior cooling over other contemporaries out in the market. The PCAP touchscreen can be changed to resistive upon request.

The OMNI series panel PCs are also available in sizes: 10.4", 12.1", 15", 17", 19", and 21,5".

Available modules include:
• USB/ COM/ LAN combo module
• Dual LAN module
• MiniCard and SIM card module
• RS-232/422/485 module
• Isolated RS-232/422/485 module
• Digital I/O module
• CAN Bus module
• Audio module

Features
• Flat surface design with PCAP or 5-wire resistive touch
• Easy to customization with OMNI-module
• Compact BOX design
• Intel Bay Trail J1900/N2807
• 15.6", 1366x768, 400nits LED B/L
• DDR3L SODIMM, max to 8GB
• RS-232/422/485
• VGA or HDMI
• Full-size Mini card x 2 (w/SIMx2)
• CFast & 2.5" HDD
• 2 LAN, 3 USB2.0, USB3.0
• Operating temperature: -20° to 60°C (N2807)
