Mini-ITX motherboards understøtter 'multiple' full-HD displays

AAEON lancerer Mini-ITX motherboards med 3. generations Intel Core i7 processorer og B75 chipsæt til support af 'multiple' full-HD displays (in english).

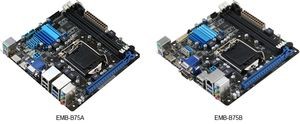

AAEON has announced the EMB-B75A / B Mini-ITX industrial motherboards based on the 3rd generation Intel Core i7 processor: These powerful motherboards deliver cutting-edge performance and flexibility for functional expansion and can be utilized in multi-display digital signage applications, such as in movie theatres, retail stores, indoor recreation facilities and infotainment stations, where vivid, High-Definition graphics images and video are essential.

The EMB-B75B offers Dual-Channel LVDS support at 18/24-bit, two HDMI and one VGA input, while the EMB-B75A is configured with three HDMI inputs along and a VGA port with both supporting full 1080P graphics.  The EMB-B75A provides dual Gigabit Ethernet ports, a SATA 6.0Gb/s port and two SATA 3.0Gb/s plus four USB 3.0 and four USB 2.0 ports for robust expansion and connectivity options. USB 3.0 provides upgraded bandwidth from 480Mbps to 5Gbps, thus greatly reducing data transfer times.

These reliable and cost efficient motherboards come in the Mini-ITX form factor and onboard industry leading Intel Core i7/i5/i3 processor while the Intel B75 chipset offers support for up to 16GB of DDR3 1600 memory.  Both motherboards also offer scalability with their support of both the 2nd and 3rd generation line of Intel Core i-series processors.

In addition, the EMB-B75A/ B both offer two COM ports, and an 8-bit Digital I/O.  Both offer WOL and programmable watchdog timers, with the EMB-B75A offering an additional onboard TPM Infineon SLB9635 TT1.2 security chipset.

The optional use of Intel Rapid Storage Technology delivers fast system boot time and load time for frequently used applications. Combine these features with the longevity of the EMB-B75A/ B motherboards and their durable wide operating temperatures of 32°F ~140°F (0°C ~60°C) and it is easy to see how system integrators can obtain excellent value and performance from either of these two boards.

Whenever Microsoft Windows platform is used, customers can easily create their own user interface without additional coding simply by downloading AAEON’s Hi-Safe program.  EMB-B75A/ B support all common operating systems such as Windows XP, Windows 7 and Linux Fedora.
www.aaeon.com.
