Kosteffektivt ARM carrierboard
DATA MODUL lancerer egenudviklet ARM carrierboard, der understøtter Colibri ARM baserede COM-moduler fra Toradex (in english).

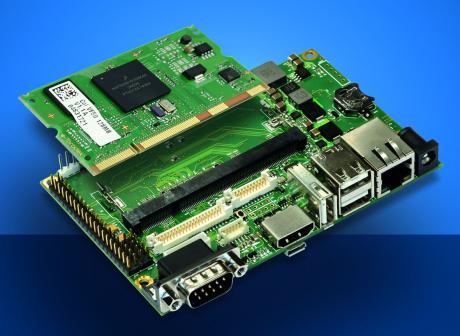

DATA MODUL announces the eDM-CB-Colibri ARM carrierboard completely designed and developed by the company. The eDM-CB-Colibri carrierboard supports the pin-compatible Colibri ARM based computer on module product family from Toradex based on NVIDIA Tegra 2 / 3 and Freescale Vybrid / i.MX6 processors.
Product highlights include:
• Panel support TTL RGB 24Bit or Dual Channel LVDS 24Bit
• Internal Power Controller to supply Panels from 4.3” to 10.4”
• RS232/485/422/CAN, ETH, microSD-Card, SPI, I²C 4xUSB, 1x USB OTG
• Scalable modules from ARM Cortex-A5 @ 400Mhz up to ARM Cortex-A9 Quad Core 1.4Ghz
• Wide Power Input: +9 to +24V DC
• Dimension 115mm x 76mm
The wide range Power input, based on 'step down' and 'step-up' converter is unique in this segment. This ensures that the internal +12V DC voltage, for the panel backlight, is constantly available even with an input voltage of +9V DC.
Toradex provides modules with a pre-installed Windows CE6 / CE7 and Windows Embedded Compact 2013 image, along with the respective runtime license under the Microsoft OEM ID. Linux is available as well.
The eDM-CB-Colibri carrierboard has a guaranteed long-term availability of at least 10 years. It is also available as kit-solution with a wide range of TFT Displays (AUO, Innolux, Powertip,..) along with matching cable set and adapted Power-ON/OFF timing. A time intensive display adjustment process is not necessary.
