Komplet hardwareløsning til Google's Brillo operativsystem

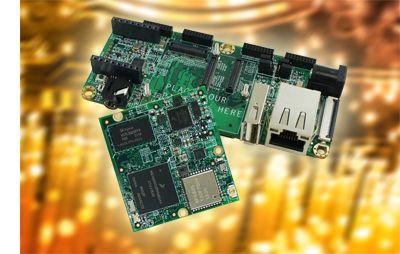

Hobbitboard fra Wandboard er kompakt højtydende 'System-on-Module, SoM', der er bygget op omkring en NXP i.MX6 UltraLite processor og sigter mod mobile IoT-applikationer (in english).
The new Hobbitboard from Wandboard, equipped with a NXP i.MX6 UltraLite processor, is a very compact, high performance SoM that is highly optimized for mobile Internet of Things applications. Connectivity is given by Gigabit Ethernet, WiFi (802.11ac) and Bluetooth 4.0. Using a pin-compatible scalable platform that not only utilizes the 'Edison' connector connectivity for sensors and low-speed I/O, but also adds additional expansion possibilities for multimedia and connectivity.Combined with the Hobbit Compute module an i.MX6 System-on-Module (SoM) it 's a complete NXP i.MX6 UltraLite hardware solution that fits the new Brillo operating system and Weave communication platform from Google. Brillo is a lightweight open source OS for connected devices with a small footprint, based on Android, offering you core services, developer kit's and a developer console for an easy and quick start.
The 'HOBBIT' development board eases prototyping and accelerates time to market by offering a complete platform; introducing a large number of ready to use sensors like 3d-Accelerator, Gyroscope or Altitude-meter and available I/O's to take advantage of todays' technology and communication challenges, giving our customers' cutting edge technology that can easily be expanded and implemented into Industry 4.0 applications. The schematics are freely available for the HOBBIT Carrier board.
Main-features:
• NXP i.MX6UL, Cortex A7
• NXP PF300 Power Management
• 4GB eMMC, DD3 2GBIT (256MB)
• Intel Edison connector and 2 expansion connectors
• TTL, I2C, GPIO, SPI, UART, USB
• LAN, Audio in/out
Applications include home automation, drones, 3D printers, climate control, robotics, remote sensor networks and more.
Texim Europe B.V.
www.texim-europe.dk
Email: nordic@texim-europe.com
Telefon: +45 8820 2632
