Kompakt Linux-ready ARM9 baseret embedded box PC
Artila introducerer 2. generations ARM-baseret box computer med præinstalleret Linux OS og filsystem (in english).

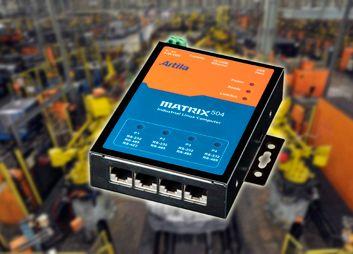

The Matrix-504 is Artila's 2nd-generation ARM9-based box computer with pre-installed Linux OS and file system. It comes with a 400MHz ARM9 CPU, 128MB NAND Flash and 64MB SDRAM. Its lower power (<3W) and extremely compact robust design concept makes it an ideal industrial computer platform for harsh environment. With the GNU tool chain CD for Linux and Windows, that comes with the Matrix-504, you immediately can start developing.The network connectivity and RS-485 interface together with the open Linux computing platform further reduces time in system developing. It's easy to add IEEE-802.11b/g WiFi support by simply plugging an USB WiFi dongle into the Matrix-504.
The Matrix-504 provides four high-speed TTY ports: Port 1 supports RS-232/422/485 and Port 2 to Port 4 support RS-232/485. There is also a wide temperature version available.
Applications include;
• Lighting control
• Remote monitoring and control
• Solar control and monitoring
• Environmental monitoring
• POS
Main features;
• Linux 2.6.29 computing platform with file system
• CPU: ATMEL AT91SAM9G20, 400MHz
• 64MB SDRAM and 128MB NAND Flash
• Backup data flash system: 2MB
• GNU C/C++ tool chain for Linux/Windows
• Power consumption: 300mA@12VDC
• 10/100Mbps Ethernet port
• Failover mechanism against system crash
• 4 high speed port RS232/422/485 (selectable)
• 2 USB2.0 host ports, 12Mbps
• microSD socket, up to 32GB (Matrix-504D)
• Operating temperature: 0° to 70°C
• Operating temperature: -20° to 80°C (Matrix-504T)
• Dimensions: 78 x 108 x 24mm
