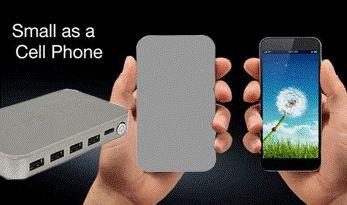

Embedded controller på størrelse med en mobiltelefon
AAEON præsenterer en embedded controller, AEC-6401, med Intel Atom N2600 processor og NM10 chipsæt i en indkapsling, der kun er 20mm tyk (in english).
AAEON presents the AEC-6401 a compact embedded controller with energy efficient Intel Atom N2600 1.60GHz processor and Intel NM10 chipset. The AEC-6401 has a 136x79.9 footprint and is one of the world’s slimmest fanless embedded computers with a 20mm thickness. The controller has enough processing power to serve in factory automation, environment monitoring, digital signage and in-vehicle computing applications, where space constraints are a major issue.System Integrators will appreciate this controller’s highly-efficient design, which allows up to 2GB of DDR3 1066 SDRAM, a 12V DC power input, four USB 2.0, and one Gigabit Ethernet, one RS-232 COM and two RS-232/422/485 serial connectivity through RJ-45 connectors. In addition, there is an option for wireless network connectivity.
The AEC-6401 has rich data gathering features via its mini-SATA connection for high speed, solid-state data storage functionality, enabling analysis data or immersive High-Definition multimedia information to be output through its mini HDMI link.
The enclosure is made of anti-vibration solid brushed aluminum and can easy be installed through din-rail or wall mounting.
Texim Europe B.V.
www.texim-europe.dk
Email: nordic@texim-europe.com
Telefon: +45 8820 2632/40427826
