COM Express Basic moduler med 11.gen Intel Core og Xeon W processorer

Kontron’s nye COMe-bTL6 (E2) COM Express Basic moduler med 11 gen. Intel Core samt Xeon W og Celeron processorer adresserer bl.a. ny generationer af intelligente edge computing applikationer (in english).

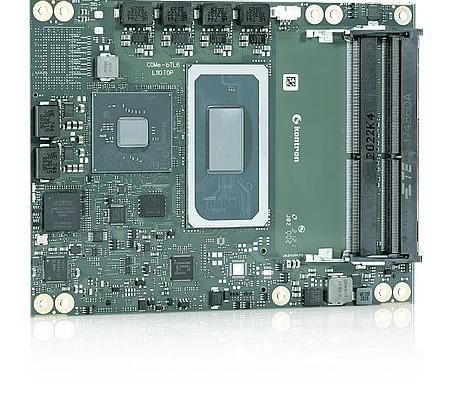

Kontron is expanding its extensive portfolio with the COM Express Basic Type 6 module COMe-bTL6 (E2) with 11th Gen Intel Core vPro, Intel Xeon W-11000E and Intel Celeron processors (former codename Tiger Lake H).

The CPUs are featuring up to 8 cores and are specifically suited for demanding Edge workloads and high-end, high-bandwidth applications. Intel Iris XeGraphics supports up to four independent 4K displays or one 8K HDR display. AI-workloads in machine vision or medical applications reach new levels of performance with the GPU and Intel Deep Learning Boost. Integrated TSN- and Intel TCC-functionality enable deterministic networks in Industry 4.0 as well as various real-time applications.

The TDP of the processor chips ranges from 25 to 45 watts, with eight processing cores enabling clock frequencies of up to 5.0 GHz. A maximum of three DDR4 SO-DIMM sockets allow a memory expansion of up to 96 GBytes (non-ECC/ECC).

With integrated Intel UHD graphics supporting up to four independent 4K displays, up to 40 HD video streams can be processed and analyzed in parallel at 1080p/30fps resolution. In addition, fast 2.5 GBit Ethernet with Time Sensitive Networking (TSN) and Intel Time Coordinated Computing (Intel TCC) predestines the module for demanding real-time applications.

As storage medium, a soldered NVMe SSD onboard with up to 1 TByte storage capacity is optionally used, which enables highly effective data processing even under harsh conditions. The COMe-bTL6 (E2) module guarantees full computing power even in extreme industrial environments with temperatures ranging from -40 °C to +85 °C and offers a higher number of application-ready integrated features and more powerful cooling compared to alternative smaller form factor designs.

- The new COM Express Basic modules with 11th generation Intel Core processors continue to drive the growth of high-end IoT, Intelligent Edge and AI-applications, says Peter Mueller, VP Product Center Modules at Kontron.
- Even demanding and highly complex workloads are handled reliably and in the shortest possible time by these modules.
