Box PC til køretøjer
Sintrones tilbyder ny blæserløs 'in vehicle' box pc, der er bygget omkring Intel Haswell processorplatformen (in english).

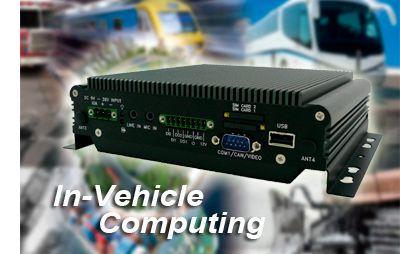

The VBOX-3120 from Sintrones is a fanless in-vehicle box PC designed with an Intel® Haswell dual core 2980U, 1.6GHz and up to 8GB DDR3L-1600 memory. Measuring only 182 x 167.6 x 52mm the VBOX-3120 provides high reliable operation, a rugged mechanical design and can operate within a temperature range from -40 to 70°C with airflow while using an SSD.This in-vehicle box PC offers good graphic performance via HDMI and DVI-I. Furthermore the VBOX3120 is equipped with dual GbE LAN ports, COM, 2x USB3.0, USB2.0, 2 in&out GPIO, 3 miniPCIe for LTE, WLAN, UMTS, GSM/GPRS, GPS and Bluetooth support. An additional feature of the VBOX-3120 is the 9VDC-36V DC input with smarter vehicle power ignition for a variety of vehicles.
Main-features include:
• Intel Gen4 dual core 2980U 1.6GHz
• Wide operating temperature range: -40 to 70°C
• Fanless design
• Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
• Input voltage: 9V - 36VDC
• Smarter vehicle power ignition
• RS-232 (COM1 with 232/422/485)
• 2 x DI / 2 x DO (12V / 100mA)
• 2.5" drive bay for SATA type HDD/SSD, (6Gb/s transfer rate)
• SIM card sockets supported onboard with eject
• 4 x SMA-type external antenna connectors
• 3 x Mini-card slots
• Supports Windows 7, WES 7, Windows 8.1, Linux 3.0.X
• Ultra compact size: 182 x 167.6 x 52mm
• Internal battery kit for 10 minutes operating (optional)
