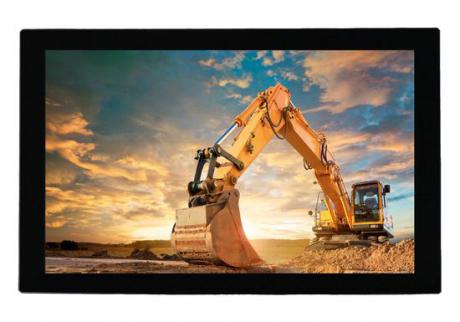

26,9 cm TFT-LCD modul med PCAP touch
MSC Technologies præsenterer 26.9 cm (10,6") TFT-LCD modul med PCAP touch and og coverglas fra Mitsubishi (in english).
MSC Technologies, an Avnet-company of Avnet, expands its product portfolio with the AA106TA01DDA11 color TFT-LCD module from Mitsubishi Electric, with is designed to meet increasing industrial demand.The 26,9 cm (10.6-inch) module with WXGA resolution (1280 x 768) can be equipped by Mitsubishi with a projected capacitive touch panel that facilitates ten-point touch operation and accurate sensing even on a wet screen. The robust cover glass of up to five millimeters in thickness allows operators to wear gloves.
MSC Technologies offers TFT-LCD, touch panel and integrated touch-control board as all-in-one solution from Mitsubishi Electric. The optional resin bonding of the TFT-LCD module with the touch-panel sensor and cover glass ensures clearer images even in bright light. The tempered cover glass with anti-reflection / anti-smudge surface treatment enlarges the wide-ranging use of the LCD module. The preinstalled TFT-LCD, PCAP touch panel, cover glass and touch controller offer superior reliability.
The AA106TA01DDA11 LCD module features a brightness of 800 cd/m² and a contrast ratio of 1000:1. The viewing angle is specified at 85 degrees (left/right and upper/lower). The color depth is 262 K (6-Bit / color) or 16.7 M (8-Bit / color). The LED driver is already integrated; a 6 / 8-Bit LVDS interface is available.
The operating temperature ranges from -30 °C to +70 °C, the storage temperature is up to +80 °C. The LCD module outline dimensions are 260.0 x 167.0 x 13.9 mm, the active area is 231.36 x 138.82 mm.
www.msc-technologies.eu
