Trådløs temperatur-sensing med aktive RFID sensorer
ELA Innovation tilbyder langtrækkende aktive RFIC sensor tags med temperatursensorer til brug i forbindeles med bl.a. transport-applikationer (in english).

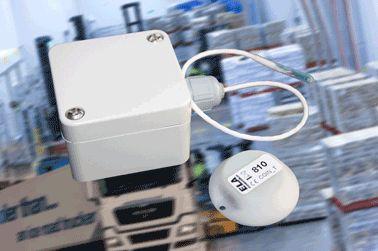

The COIN T and ITEMS TD from ELA Innovation are long range active RFID sensor tags with a temperature sensor providing data about temperature conditions for example inside a trailer during transport. These sensors operate at a frequency of 433MHz, have their own battery, and typically emit a signal at a predefined rate. Compared with passive RFID tags, active tags can generally be interrogated at a greater distance, and their signals can pass more readily through a trailer wall or other materials.The read range of these tags can reach up to 80 meters (in open air) with a battery life of 10 years or more. The COIN T is provided with an internal temperature sensor, the ITEMS TD comes with an external sensor. To facilitate the integration of these RFID sensors in your application ELA innovation offers the SCIEL series, a wide range of active RFID readers.
These active RFID sensors tags are also available with humidity, movement, digital and analog input sensors.
Applications include:
• Refrigerated transport
• Transport of blood
• Biomedical transport
• Pharmaceutical industry
• Monitoring drill temperature
Main-features:
• 433MHz Active RFID Tag
• Internal or external temperature sensor
• Resolution: 0.0625°C
• User-definable tag identifier (RW)
• Accuracy of +/- 0.5°C or +/- 1°C (depending on ambient temperature)
• Specific ID codes for low battery level
• Read range up to 80 meters (open field)
• Autonomy: up to 10 years (according to settings)
• Waterproof casing
• COIN T: compact DELRIN casing , 36mm round, 10mm thick
• ITEMS TD: ABS casing, 50x50x35mm with gland connector
