Intelligent 9-akset sensor-løsning i én pakning
Bosch præsenterer nu gennem distributionspartneren Rutronik en intelligent 9-akset 'absolute orientation sensor', der i én pakning kombinerer en både en række forskellige sensorer samt 'sensor fusion' funktionalitet (in english).

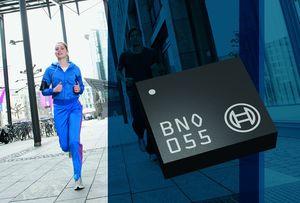

The BNO055 from Bosch is the first in a new family of Application Specific Sensor Nodes (ASSN) implementing an intelligent 9-axis 'absolute orientation sensor', which includes sensors and sensor fusion in a single package. Therefore, the BNO055 eases the integration process for customers, freeing them from the complexities of multivendor solutions for they can spend more time on product innovation, including novel applications such as wearable hardware.The BNO055 is a System in a Package (SiP), integrating a triaxial 12-bit accelerometer, a triaxial 16-bit gyrocscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the company’s BSX3.0 FusionLib software. At just 5.2 x 3.8 x 1.1mm³, it is significantly smaller than comparable discrete or system-on-board solutions and its footprint is remarkably reduced.
The hard- and software co-design enables high performance with low power consumption. Its Quaternion communication is 10 times more efficient than raw data and the integrated sensor fusion software reduces customer development costs and time. All components in one package leads to simplified system integration and faster time to market.
Bosch’s BNO055 is ideal for augmented reality, more immersive gaming, personal health, fitness and well-being, indoor navigation and any other application requiring context awareness.
