USB-C PD chip til Thunderbolt 3 designs
Cypress' USB-C PD (Power Delivery) er nu kvalificeret til brug i Thunderbolt 3 designs (in english).

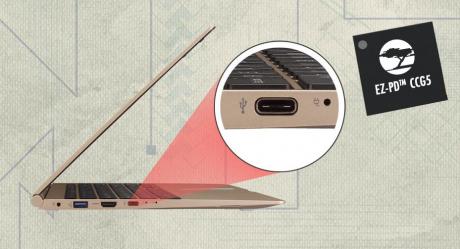

Cypress Semiconductor has announced that its programmable, EZ-PD CCG5 two-port USB-C controller with Power Delivery (PD) has now been qualified by Intel for use in Thunderbolt 3 host and peripheral designs. Thunderbolt 3 over USB-C enables data transfers at speeds up to 40 Gbps via a compact port with the ability to transmit multiple protocols and provide fast device charging. Reference designs are now available to enable fast time-to-market for PCs, docking stations, hard drives and a variety of other peripherals.Cypress’ EZ-PD CCG5 controller was the industry’s first two-port USB-C controller to support Thunderbolt 3 controllers. EZ-PD CCG5 enhances the plug-and-play USB-C user experience, while providing bill-of-material (BOM) integration with features such as built-in protection against shorts and electrostatic discharge. The highly-integrated controller increases the reliability of a system by integrating Flash memory that can store two firmware images for fail-safe boot. It offers the EZ-PD family’s trademark programmability to keep up with evolving industry standards.
- The combination of Thunderbolt 3 and USB-C allows a notebook to drive multiple 4K displays while simultaneously charging the notebook over the same port, says Ajay Srikrishna, vice president of Cypress’ Wired Connectivity Business Unit.
- As part of the Thunderbolt 3 design ecosystem, our programmable, two-port EZ-PD CCG5 controller is helping to drive the proliferation of USB-C in desktop and notebook PCs, docking stations and peripherals.
- Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gigabits per second (Gbps), creating one compact port that does it all: connecting to monitors, Thunderbolt devices, and billions of USB devices, says Jason Ziller, general manager of Intel’s Client Connectivity Division.
- Intel is pleased to have Cypress, an industry veteran, now providing solutions that broaden the options available to the ecosystem of Thunderbolt 3 based computers and peripherals.
The one-chip EZ-PD CCG5 solution minimizes BOM costs for two USB-C ports by integrating 20V regulators, sideband (SBU) muxes, USB high-speed (HS) muxes, high-voltage power FET gate drivers, VBUS-short protection for configuration channel (CC) and SBU pins, dedicated hardware to protect the system against over-voltage, under-voltage and over-current fault conditions, and system-level electrostatic discharge (ESD) protection. The controller also integrates an Arm Cortex-M0 and 128KB Flash for fail-safe firmware upgradeability.
The USB Type-C and Power Delivery standards are gaining rapid support with top-tier electronics manufacturers by enabling slim industrial designs, easy-to-use connectors and cables, and the ability to transmit multiple protocols and deliver up to 100 Watts of power. The USB Type-C standard’s 2.4-mm-high connector plug is significantly smaller than the current 4.5-mm USB Standard-A connector.
