Spændingsregulator med ultralav støj
Texas Instruments lancerer LDO lineær spændingsregulator med ultralav lavfrekvensstøj (in english).

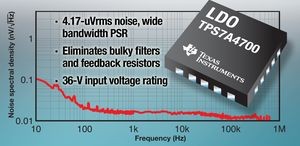

Texas Instruments (TI) has introduced a high current, ultra-low noise, low dropout (LDO) voltage regulator that achieves the industry’s lowest noise at low frequency. The 1-A TPS7A4700 LDO linear regulator features less than 4.17-uVrms output noise over the 10-Hz to 100-kHz bandwidth, eliminating the need for expensive and bulky filtering in a wide range of high-performance applications, including telecom, industrial, RF, medical, avionics and military.
TI’s new TPS7A4700 LDO uses a unique feature that enables the setting of any output voltage rail in 100-mV increments with simple printed circuit board (PCB) layout changes. This eliminates the need for expensive, high accuracy, external feedback resistors, which saves board area and reduces component count when compared to existing solutions.
With digital control methods such as I2C or PMBus, the user can program the output voltage by selecting to either ground or open the binary-weighted device pins.
For systems where both positive and negative voltage rails are required, the TPS7A4700 can be used together with TI’s -36V/-1A TPS7A3301 LDO linear regulator.
Watch a video on how to pick an LDO for noise-sensitive applications: www.ti.com/ldo-prv-eu.
