SEPIC DC/DC controller kan levere op til 10A
Linear Technology er klar med 80V synkron SEPIC/inverting/boost DC/DC controller, der kan levere en outputstrøm på op til 10A (in english).

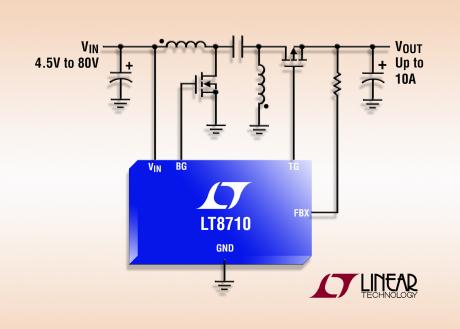

Linear Technology announces the LT8710, the companys first synchronous SEPIC, inverting, boost and flyback multi-topology DC/DC controller. This synchronous device replaces the output diode with a high efficiency P-channel MOSFET, increasing efficiency, maximum output current (up to 10A) and eliminating the heat sink typically required in medium to high power applications, making the LT8710 highly versatile for a wide range of power supply designs.The LT8710 operates over a 4.5V to 80V input voltage range and produces an output voltage that is dependent on the choice of external components. Its rail-to-rail output current monitor and control enables the device to be configured as a current source. The LT8710 features an innovative EN/FBIN pin circuitry for slowly varying input signals and an adjustable undervoltage lockout function. This pin is also used for input voltage regulation to avoid collapsing a high impedance input source such as a solar panel. The LT8710 can be used in a wide range of automotive, battery charging and general purpose applications.
The fixed operating frequency is selectable from 100kHz to 700kHz and can be synchronized to an external clock. Current-mode control provides excellent line and load regulation. The LT8710 is configurable for either forced continuous or pulse skipping operating modes during light load conditions. Additional features include single pin positive or negative output voltage sensing, a flag pin that can be used as a power good indicator or C/10 indication for accurate bulk and battery float voltages, and integrated soft-start circuitry.
The LT8710 is available in a 20-lead TSSOP package.
http://www.linear.com/product/LT8710
