Nye alsidige 90W AC/DC konvertere
RECOM lancerer under navnet RACM90-K AC/DC en nye serie af kosteffektive 90W AC/DC konvertere i en industri-standard 2" x 4" formfaktor (in english).
RECOM has added a 90W output version to their popular RACM series of AC/DC supplies for cost-sensitive applications. Specifications have not been compromised, however, with the parts featuring a wide 85-264VAC input range, tightly regulated single outputs including 12V, 15V, 24V, 36V, and 48VDC, and an operating temperature range from -40°C to +90°C with derating.
Safety certifications include 2MOPP/250VAC to IEC/EN/ANSI/AAMI ES 60601-1, ‘B’ and ‘BF’ compliant with dual input fusing for medical applications, as well as to standards for reinforced isolation for industrial, test and measurement, ITE and household use, all to 4000m altitude.
The parts are classified as Limited Power Source (LPS) and are suitable for installation in surge Class 3 and overvoltage category OVC III environments. Additionally, EN 55032/35 ‘Class B’ emissions limits are met with a large margin. Efficiency is high and is maintained down to light loads, complying with ErP requirements, and no-load consumption is less than 200mW at 230Vac.

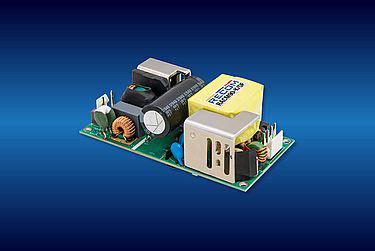

The RACM90-K series is available as an open card in the industry-standard 2” x 4” format or with an optional metallic enclosure.
- Our new RACM90-K series is one of the most versatile on the market. The parts can be used everywhere from the most demanding medical environments to the global household market, with parts offered at a very attractive price point, explains Michael Schrutka, MSc. AC/DC product manager of RECOM.
Samples and OEM pricing are available from all authorized distributors or directly from RECOM.
