'Anyside' switch controller beskytter DC-forsyninger op til 1000V
Linear Technology præsenterer isoleret 'anyside' switch controller, der kontrollerer og beskytter strømforsyninger op til 1000VDC (in english)
Linear Technology introduces the LTM9100 uModule (micromodule), all-in-one isolated anyside switch controller protects and monitors high voltage DC power supplies up to 1000V. High voltage supplies used in industrial, datacom, avionic and medical applications require a controlled turn-on, with isolation needed for control circuit protection, operator safety and breaking ground paths.Alternative relay-based or discrete solutions are bulky, complex, component-intensive and lack safety certifications. The innovative LTM9100 saves design time, certification effort and board area by wrapping all the needed functionality, including isolated power and digital telemetry, in a compact BGA package.

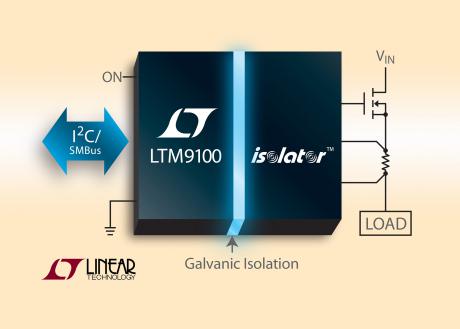

A 5kVRMS galvanic isolation barrier inside the LTM9100 separates the digital interface from the switch controller, driving an external N-channel MOSFET or IGBT switch. To guarantee a robust isolation barrier, the controller is production-tested to 6kVRMS and will be recognized by the component-level UL 1577 standard, saving months of certification time for the end equipment manufacturer. Isolated digital measurements of load current, bus voltage and temperature are accessed via the I2C/SMBus interface, enabling power and energy monitoring of the high voltage bus.
Due to its isolated nature, the LTM9100 is easily configured for high side, low side (ground return) and floating applications. Inrush current is minimized by soft-starting the load, and the supply is protected from overload and short-circuits with a current-limited circuit breaker.
The LTM9100 is versatile enough to control inrush current in hot-swappable cards, AC transformers, motor drives and inductive loads. Adjustable undervoltage and overvoltage lockout thresholds ensure that the load operates only when the input supply is in its valid range. A fully integrated DC/DC converter, including the transformer, powers the isolated switch control side.
www.linear.com/product/LTM9100
