3A µModule med en højde på kun 1,8mm
Linear Technology lancerer 3A µModule step-down regulator, der er integreret i en 6,25mmx6.25mm LGA pakning med en højde på 1,8mm og mindre end 2mm inklusiv loddetin (in english).

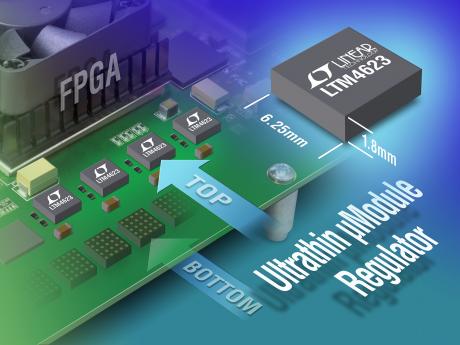

Linear Technology introduces the LTM4623 3A µModule (micromodule) step-down regulator in an ultrathin 1.8mm profile LGA package with only a 6.25mm x 6.25mm footprint. With solder paste, the package height is less than 2mm, meeting the height restrictions of many PCIe (Peripheral Component Interconnect Express), Advanced Mezzanine Cards (AMC) for AdvancedTCA carrier cards in embedded computing systems.The small size and low height allow the LTM4623 to be mounted on the backside of the PCB, freeing space on the topside for components such as memory and FPGAs. The LTM4623 operates from 4V to 20V input supplies and precisely regulates an output voltage from 0.6V to 5.5V with 1.5% maximum total DC output voltage error. Application examples include ultra-dense data storage, gateway controllers and 40Gbps to 100Gbps network equipment.
The LTM4623 solution fits in a 0.5cm2 dual-sided PCB or
The operating efficiency for converting 12VIN to 1.5VOUT and 3.3VOUT at 3A is 80% and 88%, respectively. Power loss for 12VIN to 1.5VOUT is 1.1W, resulting in only a 24°C rise in junction temperature. The LTM4623 is rated for operation from –40°C to 125°C.
