3 til 6W DC/DC konvertere med integreret EMC filter
RECOM´s nye DC/DC konvertere, REC3A, REC5A og REC6A, har indbygget EMI filtre, og kan dermed honorere kravene i EN55022, class A samt også Class B med udvidelse med en mindre kondensator (in english).

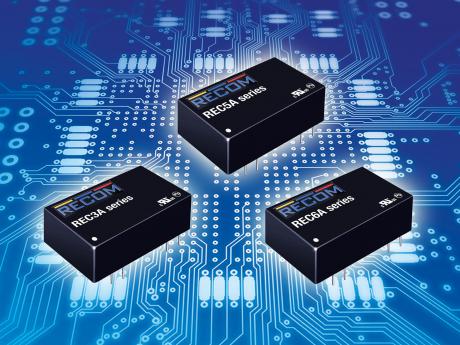

RECOM´s new DC/DC converters REC3A, REC5A and REC6A have a built-in EMI filter to meet EN55022, class A. Class B can be achieved easily with a small capacitor
The compact DIP24 modules (31.8 x 20.3 x10.2 mm) with 2:1 input (4.5-9VDC; 18-36VDC) provide a regulated 5VDC output and can be operated 0% minimum load. They are short-circuit and overload protected and are available with an optional integrated under voltage lockout.
The converters can be operated in a wide temperature range of -40 to +100°C (with derating) due to their excellent efficiency up to +81%. These modules are designed for industrial applications and can drive high capacitive loads.
The series are IEC/EN/UL60950-1 and IEC/UL/EN62368-1 certified. They come with RECOM’s standard 3 year warranty.
