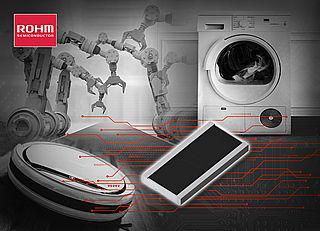

Tykfilm shunt-modstande med 4W-rating
ROHM har netop introduceret nye tykfilms-baserede shunt-modstande, der kan håndtere op til 4W, hvilket kan udnyttes i mange konsumer og industrielle applikationer (in english).
Recent years have seen an emphasis on energy savings in the industrial and consumer fields, with efforts being made to reduce power consumption during drive operation by using motor inverters. At the same time, protection circuits are becoming more important in these fields as applications continue to increase in power.
ROHM has been working on expanding its considerable lineup, most recently with the GMR320 series of metal plate shunt resistors - released in February 2021. The devices feature a higher guaranteed rated power of up to 10W. Since April 2018, ROHM has been producing the LTR50 series of low ohmic thick film shunt resistors rated at 2W. With these latest products, ROHM has expanded its lineup of thick-film shunt resistors to support an even higher power area.
The LTR100L series achieves the industry’s highest rated power of 4W in the 3264 size (3.2mm × 6.4mm)/1225 size by revising resistor materials and applying terminal temperature derating.
This makes them ideal for current detection in motor control and overcurrent protection circuits for industrial and consumer applications, which are progressing towards higher power. In addition, optimization of the element structure delivers best-in-class TCR (temperature coefficient of resistance) characteristics among thick-film shunt resistors. As a result, they are not easily affected by temperature – enabling high accuracy, high reliability current detection.
Samples can be purchased from one piece from online distributors Digi-Key, Mouser, and Farnell (starting with samples that have the following resistances: 10mohm, 47mohm, and 91mohm). Furthermore, a variety of content and tools useful for design, such as application notes, are available on ROHM’s website. Simulation Models will also be released.
Going forward, ROHM will continue to expand its resistor (a founding product) lineup from low to high power. The core aims: achieving greater energy savings and reliability, while contributing to the evolution of industrial and consumer equipment by leveraging its strengths as a comprehensive semiconductor manufacturer – to provide solution proposals utilizing ICs and discrete products.
The versatile design enables use in variety of applications, including consumer and industrial equipment.
- Industrial equipment (factory automation, motor peripheral circuits, power supplies)
- Consumer appliances (air conditioners, washers, refrigerators, vacuum cleaners)
- Other (2-wheel vehicle headlamps, EV scooters (e-bikes), etc.)
By clicking on the URL below it is possible to access the dedicated website and register as a user to begin using the ROHM Solution Simulator. Supporting documentation required for use is also available.
