ZigBee modul med 512K Flash og 64K RAM
Telegesis introducerer low power ZigBee modul, der er baseret på den nyeste Ember EM3587 ZigBee/IEEE802.15.4 løsning fra Silicon Laboratories (in english).

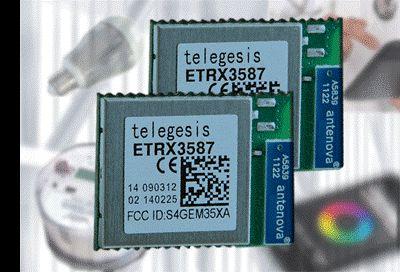

The Telegesis ETRX3587 module is a low power ZigBee module, based on the latest Ember EM3587 ZigBee/IEEE802.15.4 solution from Silicon Laboratories. The EM3587 chip is a single-chip, high-performance 2.4 GHz ZigBee transceiver and ARM Cortex-M3 processor integrated with the rigorously tested and field-proven EmberZNet ZigBee PRO networking protocol stack. This ZigBee software sets the bar for ZigBee stack reliability and has been used in more announced products than any other ZigBee stack.The Telegesis ETRX3587 module is footprint compatible with the bestselling ETRX357 module but it brings significant additional flash memory and RAM. With 512K of Flash memory and 64K of RAM this powerful product has more than enough capacity to deal with the most code intensive applications.
The ETRX3587 has been designed to be integrated into any device without the need for RF experience and expertise and lets you add powerful wireless networking capability to your products easily and bring them to market quickly.
Main features:
• SMT module 25mm x 19mm
• Side castellation’s for easy soldering
• 2 antenna options: Integrated chip antenna or U.FL coaxial connector
• JTAG programming and real time network level debugging
• 512kB flash and 64kB of RAM
• Lowest deep sleep current
• Wide supply voltage range (2.1 to 3.6V)
• Module ships with standard Telegesis AT-style command interface based on the ZigBee PRO feature set
• Every module can act as an end device, router or coordinator
• 24 general-purpose I/O lines including analogue inputs (all GPIOs of the EM3587 SoC are accessible)
• Firmware upgrades via serial port or over the air (password protected)
• Hardware supported encryption (AES-128)
• CE and FCC compliance
• Operating temperature range: -40°C to +85°C
Applications include:
• Smart metering products
• Home automation solutions
• Smart lighting and building control systems
• Medical and home healthcare devices
