Trådløse M2M kommunikationskort til industriapplikationer
Innocom annoncerer 3G/4G kommunikationsmoduler, der er baseret på miniPCI Express Mini Card standarden med USB 2.0 interface (in english).

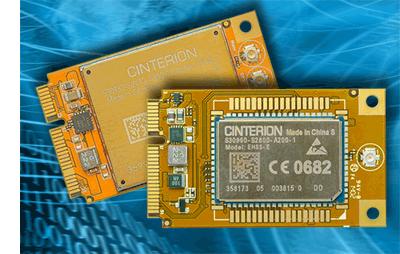

The new generation of Lena PCI Express MiniCard Data Module series is designed for machine-to-machine (M2M) applications in partnership with Gemalto, the worldwide leading supplier of wireless modules for the cellular M2M communication market.The wireless communication card modules of Innocom are based on the miniPCI Express Mini Card standard with USB 2.0 interface. The cards support a variety of advanced air interfaces such as GSM, GPRS, EDGE, WCDMA, UMTS, HSPA+, EV-DO, LTE (Europe & America).
The miniPCI Express cards from Innocomm enables any mobile computing device to be a communication tool.
Generel features of the 3G and 4G modules includes:
• Full size form factor 51x 30 x 4.75 mm
• Power: 3.0 ~ 3.6V
• Operation temperature: -30°C to +85°C
• Supports Windows, Linux and Android
• Interface: USB 2.0, USIM/SIM, wake-up, status LED, reset
• Sim card holder for M2M and vertical applications (optional)
Features for the 3G module includes:
• 3GPP rel.7 compliant protocol stack
• Air interface: GSM/GPRS/EDGE and WCDMA/UMTS/HSPA
• Data speed: DL: 7.2 Mbps UL: 5.76 Mbps
Features for the 4G module includes:
• World wide band coverage
• Air interface: GSM/GPRS/EDGE, HSPA+, EVDO+ HSPA,EVDO, LTE
• Data speed: DL: 14.4 Mbps UL: 5.76 Mbps
Applications includes wireless terminals, fleet management, tracking, Utility metering, in-vVehicle infotainment and vending machines etc.
