Rutronik kan nu levere Insight's SiP Bluetooth 5.1 modul

Den nye ISP1907 serie fra Insight er velegnet til både basale og komplekse IoT-applikationer i såvel professionelle som private miljøer (in english).

For long distance and direction finding connections: The ISP1907 series from Insight - now available from Rutronik - is suitable for both basic applications and complex requirements in almost every IoT application in professional and private environments.

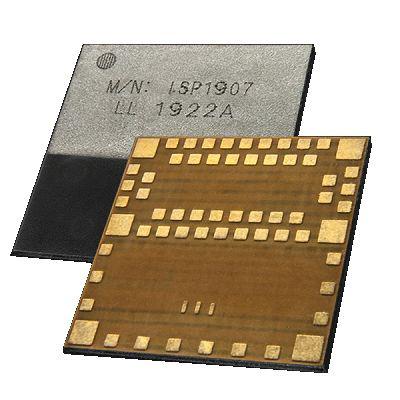

Based on the nRF52 System on Chip (SoC) from Nordic Semiconductor, the ISP1907 is a high-frequency transceiver with a clock frequency of 2.4GHz. The LL version comes with 192 kB Flash and 24 kB SRAM and is based on the nRF52811. It has 13 configurable GPIOs, including three ADCs.

The HT version is convincing with 512 kB Flash and 128 kB SRAM and is based on the nRF52833. Here 30 GPIOs are available, eight planned as ADCs. The security equipment also includes an NFC-A tag for OoB pairing and an ARM Cortex M4F Floating Point Processor. A USB interface is also already included in the HT version.

With a size of just 8x8x1 mm, the Bluetooth Low Energy (BLE) module combines resilient computing power with impressive battery life. This makes it an optimal ready-to-use solution for most IoT applications in professional and private environments, especially for object tracking in warehouses and buildings or ID tracking of people.
