RS-485/RS-422 transceivere opererer med dobbelt hastighed over længere afstande
Maxim præsenter ESD-protected RS-485/RS-422 transceivere, der gør det muligt at operere med 100Mbit/s datahastigheder med kabelængder på 50 meter (in english).
Industrial designers can now achieve 2x faster data rates and extend cable length by up to 50% with MAX22500E, MAX22501E, and MAX22502E RS-485 transceivers from Maxim Integrated Products.With motion control systems requiring more accuracy over longer distances, system designers are challenged to maintain faster data rates and achieve robust communications with longer cables. A production site, for example, may not efficiently function with a slow data rate and short cables as it must transfer accurate information quickly and over a long distance.

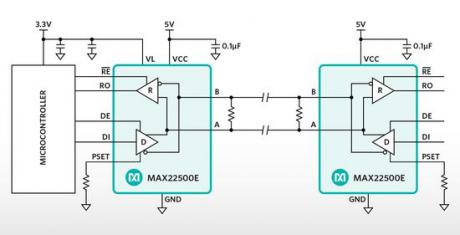

The MAX22500E/MAX22501E (half-duplex) and MAX22502E (full-duplex) ESD-protected RS-485/RS-422 transceivers extend the reach of communication up to 100Mbps over 50m. This provides the industry’s fastest data rates for accurate, cost-effective, and robust communication across long cables for a variety of motion control applications.
The settable pre-emphasis feature within the MAX22500E and MAX22502E enables 2x faster data rates compared to competitive solutions for increased encoder resolution and reduced latency. Pre-emphasis extends cables up to 50% longer to communicate over longer distances. A large receiver hysteresis (250mV) provides superior robustness to EFT. In addition, by improving the signal integrity and robustness, system designers can achieve the same level of performance with lower-cost cables. The transceivers operate over the -40-degree Celsius to +125- degree Celsius temperature range.
- These RS-485 transceivers demonstrate Maxim’s commitment to the industrial and motor control market, and are pushing the envelope to meet customer challenges, says Susie Inouye, Research Director at Databeans.
- Our solutions offer customers with the flexibility and performance they need to upgrade their systems. For example, they can swap out the IC on their hardware while keeping the same infrastructure. Similarly, end customers can adjust data rates and cable lengths, adds Timothy Leung, Executive Business Manager, Industrial & Healthcare Business Unit at Maxim Integrated.
