Multi-GNSS modul med topydelse til bl.a. wearables og droner
u-blox annoncerer et særdeles højtydende og ultrakompakt multi-GNSS modul til brug i bl.a. wearables, droner og udstyr til 'asset' tracking (in english).
u-blox announces the launch of ZOE-M8G, an ultra-compact GNSS (Global Navigation Satellite System) receiver module, especially designed for markets where small size, minimal weight and high location precision are essential.ZOE-M8G offers exceptionally high location accuracy by concurrently connecting to GPS, Galileo and either GLONASS or BeiDou. It also provides industry-leading -167 dBm navigation sensitivity. This makes the ultra-small ZOE-M8G perfect for wearable devices, unmanned aerial vehicles (UAVs) and asset tracker applications.
The new u-blox ZOE-M8G helps simplify product designs, because it is a fully integrated, complete GNSS solution with built-in SAW-filter and Low Noise Amplifier (LNA). This means it can be used with passive antennas, without the need for additional components, and doesn’t compromise performance.

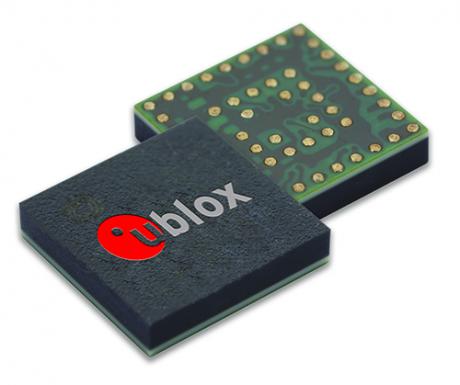

The ZOE-M8G GNSS module measures only 4.5 mm x 4.5 mm x 1.0 mm. Due to its very small size, a complete GNSS design using a ZOE-M8G module takes approximately 30% less PCB area compared to a conventional discrete chip design with a CSP chip GNSS receiver.
Uffe Pless, Product Marketing, Positioning Product Center at u-blox, explains:
- When you’re designing products such as smart watches, fitness trackers, asset trackers, UBI dongles and even drones, every square millimeter and every gram counts. The u-blox ZOE-M8G makes it significantly easier for product designers to achieve precise location tracking while keeping within their strict form factor and weight restrictions.”
Samples of the u-blox ZOE-M8G will be available in February 2017 and volume production will start in October 2017.
