LTE M2M modul til krævende applikationer
Gemalto er klar med LTE M2M modul, der understøtter hastigheder på op til 100 Mbit/s og 50 Mbit/s for henholdsvis downlink og uplink (in english).

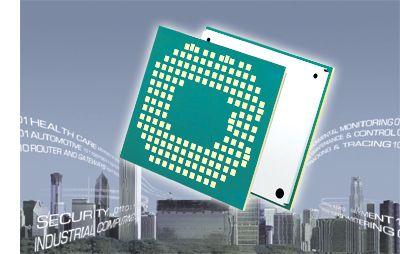

The Gemalto Cinterion PLS8 LTE cellular M2M module is optimized for high bandwidth computing, enabling speeds up to 100 Mbps for downlink and 50 Mbps for uplink. PLS8 and its variants, PLS8-E and PLS8-US, provide true worldwide coverage and reliability even while roaming across different wireless networks.The PLS8 supports multi designs due to footprint compatibility with Gemalto M2M's 3G/GSM and CDMA Cinterion modules PHS8 and PXS8/PVS8. Two antenna pads enable diversity support allowing PLS8 to provide improved data speeds. An optimized GPS antenna path eliminates blanking on GPS and provides more consistent performance.
Gemalto M2M's unique type of LGA technology enables optimized heat dissipation that prevents warping and gives customers the freedom to select the most beneficial soldering paste for each individual application.
Like all Cinterion products, the PLS8 comes with full type approval (FTA) and is certified by the largest global network operators.
Features include:
• Quad band LTE
• Tri Band UMTS/DC-HSPA+
• GPRS/EDGE quad/dual band
• GPS / A-GPS / GLONASS
• LGA mounting technology
• Extended temperature range
• Advanced power management technology
• USB 2.0
• Multi OS support
Applications include:
• Ruggedized mobile computing
• Security solutions
• Medical equipment
• Gateway routers
• Payment systems
