Langtrækkende RFID-tag med intern bevægelsessensor
ELA Innovation introducerer den såkaldte COIN MOV, der dækker over en RFID tag med lang rækkevidde, som samtidig har en indbygget en bevægelsessensor (in english).

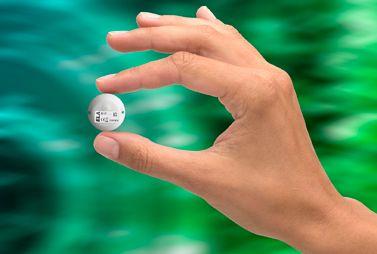

The COIN MOV from ELA Innovation is a long range active RFID tag with internal motion sensor operating at a frequency of 433MHz. Active RFID is a form of Auto ID (automatic identification) characterized by the use of ID tags which are self-powered and typically emit a signal at a predefined rate. Compared with passive RFID tags, active tags can generally be interrogated at a greater distance, and their signals can pass more readily through a trailer wall or other materials.The compact, IP68 waterproof COIN MOV can detect any critical movement of assets in large areas, indoor as well as outdoor. The read range of these tags can reach up to 80 meters (in open air) with a battery life of 4 years or more. If the measured movement is higher than the user programmed threshold, the COIN MOV sensor sends its identification code and movement value. Detected by an active RFID reader connected to a security system this signal will alert security people or generates protection relevant actions (visual or sound alarms, activation of surveillance cams e.g.)
Features includes:
• 433MHz Active RFID tag
• Ultra-compact anti-hanging shape, 36mm diameter, 10mm thickness
• Internal motion sensor
• Robust design, IP68 waterproof white DELRIN casing
• Movement threshold management
• Multiple frame's emission cycle (alarm mode, sleep mode)
• User-definable tag's identifier (RW)
• Specific ID code's for low level of battery
• High distance range: up to 80m (open field)
• Autonomy: up to 4 years (according to settings)
• Operating temperature: -30° to +70°C
• RoHS compliant
