Langtrækkende 'narrow-band' moduler til 868MHz frekvensbåndet

ADEUNIS RF præsenterer to langtrækkende 'narrow band' moduler, der opererer i 868MHz ISM frekvensbåndet (in english).

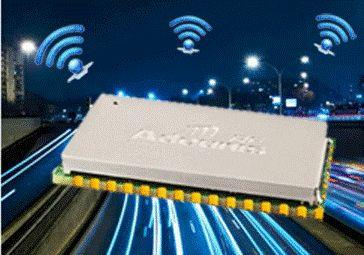

With its performance (RF sensitivity -120dBm / link budget 147dB), the NB868 module sets new standards of very long distances 'point-to-point' data transmission. The NB868 uses license-free frequencies and enables a two-way digital link over a range up to 20 km (for 500mW module).  The use of Narrow Band technology allows a large number of available channels: +500 channels@ 14dBm/2.4kbps and 19 channels@27dBm/2.4kbps.

Thanks to the embedded STM32 ARM Cortex-M3 microcontroller, the NB868 module provides a large set of radio transmission modes and functions, allowing a wide number of services and features for customer applications.  Available in ready-to-use version, this module focuses on ease of integration, even for non RF specialists, thus limits technological risks, development time and costs.

Applications includes communication systems/infrastructure design, portable terminals, industrial remote controls, lighting controls, barcode scanners, data recording, road signals.

Texim Europe B.V.
www.texim-europe.dk
Email: nordic@texim-europe.com
Telefon: +45 8820 2630
