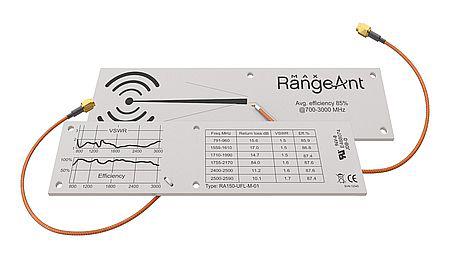

Kompakte 700 MHz til 3 GHz antenner med 'free-space' effektivitet på over 80 procent
Det svenske firma, RangeAnt, der har specialiseret sig inden for wideband antenner, lancerer den såkaldte MAX-serie af kompakte 700 MHz til 3 GHz antenner til IoT og GNSS applikationer (in english).
RangeAnt, a specialist in wideband antennas for embedded applications, announces the MAX family of compact, 700 MHz to 3000 MHz antennas. MAX antennas are designed primarily for cellular, IoT and GNSS applications. They feature a market-leading, free-space efficiency of between 80 and 90%, and a VSWR below 2:1 across the operating bands.
The high efficiency of the antennas delivers greater range for the available transmitter power, and improved receiver performance. Alternatively, where reducing energy consumption is a priority, such as in IoT applications, lower transmitter power can be used for a given link range.
MAX antennas are suitable for use with Bluetooth, Zigbee, Sub-GHz, LPWAN (LoRa, Sigfox, Weightless), Wi-Fi, and cellular (2G, 3G, 4G/LTE and NB-IoT) wireless protocols, and GPS/GNSS reception. They enable wireless module manufacturers and OEMs to build products for global markets while minimizing their design effort and inventory by only using one type of antenna.
Full performance is achieved without the use of a separate ground plane, allowing unprecedented design freedom for mechanical and electrical engineers. The antenna can be integrated into a product without taking a ground plane into consideration and without compromising wireless reliability or signal quality.
RangeAnt MAX antennas feature a patent-pending, double-sided board design where the conductor patterns are different on each side of the board. The omnidirectional antennas function as a monopole up to 1,600 MHz and a dipole above this frequency.
They are designed for a 50 Ohm match in free space but when packaged within a wireless module or system, maintaining optimum efficiency may sometimes require additional matching components. The antenna board includes pads for installing surface mount matching components, if needed. RangeAnt offers guidance on suitable matching networks and matching services for specific applications.
Hans-Erik Backram, RangeAnt’s CEO, explains:
- Our research indicates that MAX antennas offer over 20% better performance compared with the nearest wideband antenna alternatives. This gives system designers greater flexibility in optimizing the trade-off between operating range, data rates, and power consumption for their wireless links. For the first time, they can optimize their designs while working with a single antenna, whatever the desired frequency band or wireless protocol.
RangeAnt MAX antennas are now available from stock at Digi-Key Electronics.
About RangeAnt
RangeAnt is a Swedish antenna design center and manufacturer with cutting-edge expertise in the development of embedded antennas. The antenna R&D team has more than 25 years of experience in complex designs for everything from medical and industrial applications to mobile phones.
Its successful track-record includes creating antenna designs for leading brands worldwide such as Motorola, Ericsson, Nokia, and Apple. The growing diversity of wireless applications led to the development of its latest family of high-efficiency, wideband antennas. These 700 MHz to 3000 MHz antennas makes it easier for OEMs to develop products for global markets, simplifying design and minimizing component inventory. One antenna can be used for many applications without compromising performance.
RangeAnt is a spin-off from the Swedish design center ShortLink. ShortLink has extensive knowledge and expertise in the development of energy-efficient electronics for wireless communication and portable products.
