Kompakt WiFi modul med integreret antenne
Inventek lancerer kompakt, plug-and-play 2,4 GHz WiFi modul med integreret antenne samt en integreret TCP/IP stack, der kun kræver simple AT kommandoer for etablere konnektivitet (in english).

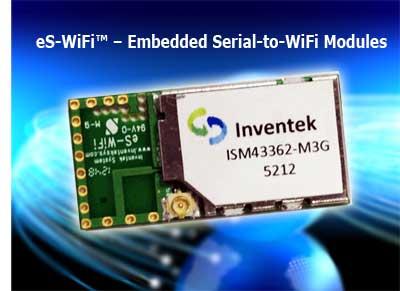

The new ISM43362-M3G-L44 is a member of Inventek’s eS-WiFi family of embedded wireless internet connectivity devices that operate in the 2.4 GHz spectrum. The Wi-Fi module ISM43362-M3G-L44 hardware consists of an host processor, an integrated microstrip antenna and a Broadcom Wi-Fi device with a standard USB, SPI or UART interface capability.Inventek System’s eS-WiFi firmware release C2.4.0.2 adds several exciting features plus a full complement of AT Commands simplifying the design and implementation of secure embedded wireless networking connectivity.
The Wi-Fi module requires no operating system and has an integrated TCP/IP stack that only requires a simple AT command set to establish connectivity for your wireless product.
The module has a very small 15mm x 30mm surface mount footprint and has full FCC and CE module certification. This product is targeted for low cost embedded wireless applications and enables a quick, easy and cost effective method adding WiFi connectivity to your platforms.
Main-features:
• 802.11 b/g/n compliant based on Broadcom MAC/baseband/radio device
• Fully contained TCP/IP stack minimizing host CPU requirements
• Configurable though simple AT commands
• FCC and CE certification
• Soft Access Point for up to 7 clients for configuration and ad-hoc networks
• Host interfaces: USB (HID/VCP),UART and SPI
• Network features: ICMP (Ping), ARP, DHCP,TCP, UDP
• Low power operation (3.3V supply) with built in low power modes
• Secure WiFi authentication WEP-128, WPA-PSK (TKIP), WPA2-PSK
Application include:
• DA, pocket PC, computing devices
• Building automation and smart energy control
• Industrial sensing and remote equipment monitoring
• Health and fitness
• Warehousing, logistics and freight management
• PC and gaming peripherals
• Printers, scanners, alarm and video systems
• Medical applications including patient monitoring and remote diagnostics
