Kompakt GNSS-modul med høj følsomhed
SIMCom er klar med ny ekstremt kompakt GLONASS/GPS receiver (in english).

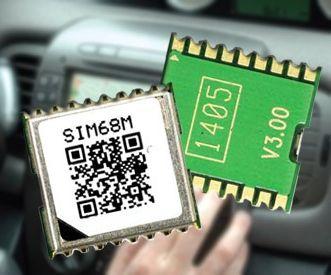

SIMCom presents a high performance and reliable GNSS module the SIM68M. The SIM68M is one of the most compact GLONASS/GPS receivers in the world.The SIM68M has a high sensitivity navigation engine, is accurately and the time-to-first-fix (TTFF) has a low power consumption. With these properties it can implement into a wide variety of different devices, including automotive applications that require a functional navigation receiver.
The small enclosure is also a main feature of this navigation receiver, measuring only 10.1x 9.7x 2.5 mm!
Key features:
• Chipset: MT3333
• Dimension: 10.1*9.7*2.5 mm
• Weight: 0.5g
• Package: 18 pin LCC
• Baud rate: 9600 or 115200 bps
• Flash version
• LNA integrated
• Protocol support: NMEA, PMTK
• 33tracking/99 acquisition-channel GNSS receiver
• Power supply 2.8V~4.3V
• Operation temperature: -40°C to +85 °C
• Antenna Type: Active and passive
• Antenna Power: External
• Interface: UART, PPS, EINT0
Supports
• GPS/GLONASS/Galileo/QZSS
• EASY self-generated orbit prediction
• EPO TM orbit prediction
• SBAS ranging (WAAS,EGNOS,GAGAN,MSAS)
• AGPS
• Jamming Removing
Applications include mobile phones, personal navigation devices, asset tracking and vehicle navigation.
