Bluetooth LE modul med dual ANT+
Insight SIP lancerer Bluetooth low energy modul med fuldt integreret dual ANT+ (in english).

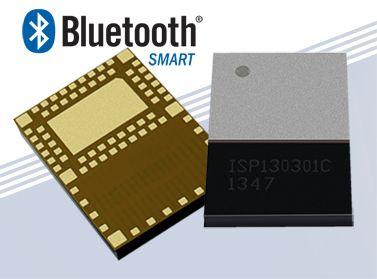

The ISP13030-ANT a new generation Bluetooth low energy module introduced by Insight SIP and measures only 8x11x1.2 mm. The module is based on the nRF51422 Nordic Semiconductor wireless system on chip (SoC), has an integrated 2.4 GHz transceiver, a 32 bit ARM Cortex-M0 microprocessor, flash memory and is suitable for analog and digital peripherals.It can support ANT/ANT+, Bluetooth low energy and 2.4 GHz proprietary ultra-low-power wireless protocols.
Fully qualified BLE stacks for nRF51422 are implemented in the S100 series of SoftDevices which can be freely downloaded. nRF51 platform also provides extensive software support for ANT applications with S210 and dual ANT/BLE stack S310.
The module is designed for ultra-low power applications such as sports and wellness sensors. Because of the advanced power management it works several years on a coin cell battery.
Features include:
• ANT / ANT+ protocols
• Single Mode BLE v4.1
• Proprietary 2.4 GHz protocols
• Based on Nordic Semiconductor nRF51 family
• 2.4GHz low energy RF Transceiver
• 32bit ARM Cortex M0 CPU with 256kB Flash
• Analog and Digital peripherals
• Ultra Low Power Consumption
• Single 2.1 to 3.6 V supply
• Very small size 8.0 x 11.0 x 1.2 mm
• Temperature -25 to 75 °C
• Fully integrated RF matching and Antenna
• Integrated 16 MHz and 32.768 kHz Clocks
Applications
• Space constrained BLE Slave Devices
• Sport and fitness sensors
• Health care sensors
• Out of Range (OOR) sensors
• Personal User Interface Devices (PUID)
• Remote controls
Texim Europe B.V.
www.texim-europe.dk
nordic@texim-europe.com
Tlf.+45 8820 2632
