3G M2M modul med 2G footprint
Gemalto M2M præsenterer højeffektivt 3G kommunikations modul i et ulltrakompakt footprint, der er specielt velegne for eksisterene M2M applikationer, der bevæger sig til 3G teknologi (in english).

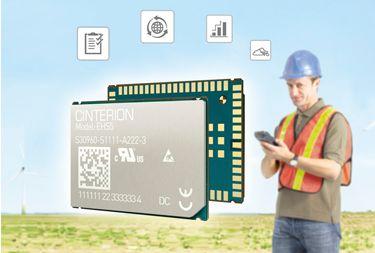

The EHS5 module from Gemalto M2M is highly a efficient 3G communication module for mobile dataterminals and POS-terminals in an ultra-compact footprint. It's the ideal solution for M2M applications moving to 3G technology. Offering a backward and forward compatible footprint (LGA), its multi design capability offers seamless migration and unmatched flexibility to choose frequency bands and global roaming whenever needed.Powered by Intel's latest HSPA+ baseband, the EHS5 features a low power consumption, high speed data communication, supports voice and data communication and comes with common industrial interfaces such as USB and serial interfaces.
The platform incorporates an improved Java concept using Multi MIDlet Java execution to simultaneously host and run multiple applications and protocols. An extended security concept with the latest TLS/SSL engine provides secure and reliable TCP/IP connectivity while an enriched internal flash file system enables royalty free firmware updates over-the-air (FOTA) when required. Sophisticated sandbox modeling and layered architectures simplify device management and separate mobile network operator approvals from application code development.
Key features include:
• GPRS/EDGE Class 12
• Dual band UMTS/GSM
• HSPA, data rates DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
• Java profile IMP-NG & CLDC 1.1 HI
• Optimized for low power consumption
• Multi Design Capability (LGA)
• Embedded TCP/IP stack (via AT command)
• USB 2.0
• RLS monitoring (Jamming Detection)
• FOTA configurable & free of charge
• Extended operating temperature range: -40° to +85°C
• Dimensions: 27,6 x 18,8 x 2,3mm
Texim Europe B.V.
www.texim-europe.dk
Email: nordic@texim-europe.com
Telefon: +45 8820 2632
