Ny åben display-standard sikret let opkobling til forskellige displays

MIKROE løfter sløret for ny åben standard for display-opkobling, DISCON, der understøtter let og fleksibel konnektering til en forskellige display-typer og -størrelser (in english).

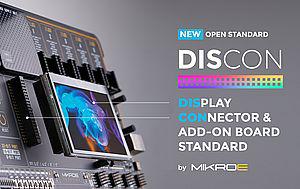

MikroElektronika (MIKROE) has announced a new open standard – DISCON – that defines both display socket and display board, facilitating simple installation and replacement of any type of display on a development board that carries the DISCON socket.

By achieving the goal of a universal standard for display type add-on boards, months of wasted development time and money are saved and enormous design flexibility and scalability has been made possible.

- With DISCON, we are ensuring absolute compatibility between the development board and any of the supported displays, regardless of their size and type, says Nebojsa Matic, CEO of MIKROE.

The DISCON standard specifies functional and æsthetic requirements that must be respected in the development process. This includes the physical layout of the display board, communication and power supply pins, the size and the shape of the display board, and the silkscreen marking conventions for both the add-on boards and sockets. It permits all sizes and styles of TFT display to be used – currently 3.5in, 4.3in, 5in and 7in units, and capacitive, capacitive with bezel, capacitive with frame, and resistive styles are supported.

The DISCON display board socket consists of a 2x20-pin connector with a proprietary pin configuration and silkscreen markings. The connector is a female 2x20-pin device, on a standard 2.54mm pitch. It may also have a polarization post for easier positioning of the display board. The pin-out consists of four different groups of pins – I2C, GPIO, data pins for the parallel data-port, and optional control pins - along with power supply pins.

MikroElektronika (MIKROE) is committed to changing the embedded electronics industry through the use of industry standard hardware and software solutions. In 2011, the company invented the mikroBUS development socket standard and the compact Click Boards that use the standard to dramatically cut development time.

Now the company offers 1000 Click Boards – ten times more than competitors - and the mikroBUS standard is included by leading microcontroller companies such as Microchip, Renesas and Toshiba on their development boards. SiBRAIN is MIKROE’s latest standard, for MCU development add-on boards and sockets. MikroElektronika also makes the world’s widest range of compilers and additionally provides development environments, development boards, smart displays and programmers and debuggers.
