Intelligent displaymodul med mange features

Intelligent displaymodul med mange features

4D Systems lancerer 3,5" 480x320 pixel displaymodul med en række vigtige on-board features (in english).

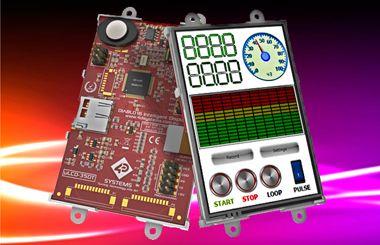

The uLCD-35DT from 4D Systems is a 3.5", 480x320 high resolution intelligent display module powered by the DIABLO16 graphics processor, and featuring a resistive touch display, on-board audio amplifier and a microSD card socket.

Driving the display and peripherals is the DIABLO16 processor, a very capable and powerful chip which enables stand-alone functionality, programmed using the 4D Systems Workshop 4 IDE software. The Workshop IDE enables graphic solutions to be constructed rapidly and with ease.

The uLCD-35DT has an array of features including touch detection, micro-SD memory storage, general purpose I/O including Analog Inputs, PWM, multiple TTL Serial, I2C and SPI channels and multiple millisecond resolution timers, amongst many more features. Programming is don with 4D Systems Workshop4 IDE software.

Features:
• 3.5" TFT LCD with integrated resistive touch
• HVGA 320x480 resolution with 65K true to life colours
• Powerful DIABLO16 graphics processor
• PWM audio with on board amplifier and speaker
• 6 Banks of 32Kb Flash, 32Kb of RAM
• Easy 5-pin interface to any TTL serial host
• 16 General purpose I/O with mappable features
• GPIO is variously configurable for alternative functions
• On-board micro-SD memory card connector
• Optional: Wire Loom & alternate micro-SD connectors
• DOS compatible file access (FAT16)
• 8 x 16 bit timers with 1ms resolution

Applications include industrial systems, medical applications, test and measurement, POS terminals, security systems & access control systems.

Texim Europe B.V.
www.texim-europe.dk
Email: nordic@texim-europe.com
Telefon: +45 8820 2632

23/9 2014
