COG displays kombinerer unikke features
Høj kvalitet, kompakt, lav vægt samt attraktiv prissætning er de vigtigste features i Batron 'Chip-on-Glass (COG)' displaylinjen, der designes og produceres af DATA MODUL (in english).

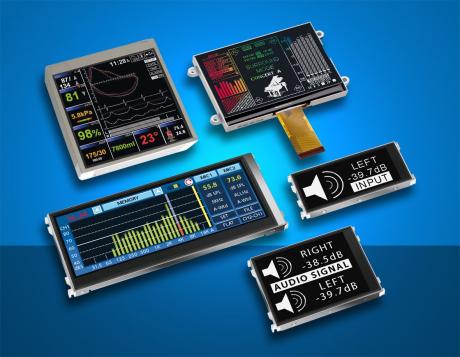

The Batron COG-Graphic range offers displays with resolutions of 128 x 64 up to 320 x 240 in many different dimensions, technologies (STN, FSTN, FFSTN) and LED backlight colors.The modules are also available with many different LED colors and types. The aesthetic of the displays is also excellent due to their high contrast ratio and enhanced readability.
All modules are suited to industrial applications and can be operated in a temperature range of -20°C to +70°C. As an option the displays can be provided with a 4-wire-resistive touch panel. In addition, a lineup of four TFTs is offered by the Vision+ Line. These TFTs, two monochromes (black/white), and two full-colors guarantee excellent viewing characteristics and high end specification.
The technology used allows for extreme wide viewing angles without any visible color shift, typical contrast ratio of 1:1000 and an operating temperature range of at least -30°C to +85°C.
The monochrome TFTs are available with a screen size of 7.7 cm (3.0") with a resolution of 320 x 120 pixels and also with a double height 8.9 cm (3.5") version with 320 x 240 pixels resolution. Both own a brightness of 600 cd/m² and the outstanding backlight lifetime (half initial brightness) will exceed 100k hours. The interface can be switched between serial (SPI 3-/4-wire) and 8-bit parallel (8080/6800).
The exceptional color TFTs round up the portfolio. The first with 800 x 280 pixels and diagonal of 15.9 cm (6.3"), brightness of 480 cd/m² and a backlight lifetime (half initial brightness) of minimum 70k hours. The second one, a square format, normally-black mode 4.6" (11.7 cm) with brightness of 700 cd/m² and a resolution of 430 x 430 pixels. The interface for both is 3x6-bit parallel.
