IO-Link kommunikationsteknologi kan nedbringe downtime i fabrikken
Maxim har netop introduceret et nyt IO-Link referencedesign, der er bygget op omkring MAX22515 IO-Link transceiveren samt MAX22000, der er en software-konfigurerbar analog IO-chip (in english).

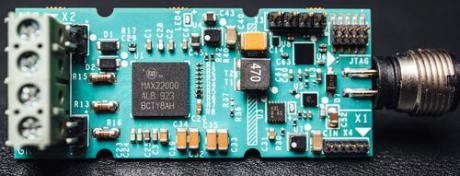

Modern smart factories need to quickly and remotely adjust a sensor’s electrical characteristics to minimize downtime and maximize throughput. The MAXREFDES177# IO-Link reference design from Maxim Integrated Products demonstrates the flexibility of the MAX22515 IO-Link transceiver, seamlessly configuring all modes of the MAX22000 software-configurable analog IO. This chipset provides flexibility with faster reconfiguration to reduce factory downtime.Maxim Integrated’s chipset solution of MAX22000 and MAX22515 builds upon the benefits of IO-Link’s two-way universal interface. The IO-Link interface allows every IO-Link sensor, actuator or IO expansion module to be interchangeable to a standard hardware interface. It also provides software-defined performance parameters and selectable analog input or output performance modes. These software-selectable capabilities are combined and demonstrated in the MAXREFDES177# IO-Link reference design.
The main-features in the IO-Link and software-configurable IO products is:
MAX22000: The software-configurable analog IO provides up to more than half the power savings and approximately half the size compared to the closest competitive solutions on the market. Key functions integrated include a 24-bit ADC analog input mode and an 18-bit DAC analog output mode, as well as operations over either a single 2-wire interface or a 4-wire resistance temperature detector (RTD)/thermocouple temperature measurement.
MAX22515: The MAX22515 is the industry’s smallest ±1.2kV/500 ohm surge-protected, single-channel IO-Link transceiver. It features high integration with protection diodes, auxiliary digital input, I²C or pin control, integrated oscillator and selectable 3.3V or 5V LDO which help to provide high configurability and reduce SKU.
It enables half the power dissipation due to low 2.2 ohm or 2.65 ohm (typ) C/Q driver on-resistance compared to the closest competitor, in the smallest 2.5mm x 2.0mm WLP package. It cuts the solution size up to 67 percent compared to the closest competitor and fits into small, space-constrained IO-Link sensors or actuators.
