7 tommer ARM-baseret multi-touch displayløsning
TechNexion er klar med 7 tommer multitouch display til brug i forbindelse med industrielle HMI-applikationer (in english).

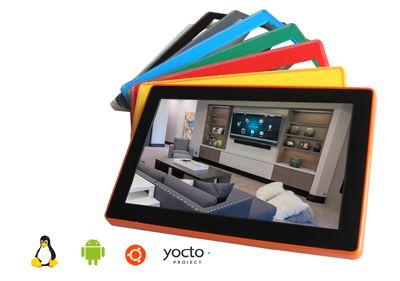

The Toucan-0700 from TechNexion is a 7 inch widescreen plug-and-play HMI. This multi-touch solution is based on the Freescale i.MX6 ARM Cortex-A9 multicore technology. The Toucan-0700 crystal clear projective multi-touch LCD screen with LED backlighting offers a high resolution (1024x600) and a brightness of 500 nits.The CAN Bus and serial ports (RS-232/422/485) are galvanic isolated. The Toucan-0700 offers an attractive set of interfaces such as USB host, USB OTG, Micro-SD card slot, 4 GPIO's and HDMI for secondary display. Simply plug the Toucan-0700 onto your development kit and the display will automatically be detected.
The Toucan-0700 can be used with Linux 3.x, Yocto, Ubuntu, Android 4.3 (Jelly Bean) and Android 4.4 (KitKat) operating systems.
Main features include:
• Freescale i.MX6 Solo/Duallite (i.MX6 dual/quad optional)
• Memory 512MB (Solo), 1GB (Duallite)
• 7 inch LCD, 1024x600 pixels, 500 nits
• 4-point multi-touch PCAP LCD
• 1 RS232 and 1 RS-232/422/485 galvanic isolated
• 2 CAN bus, galvanic isolated
• USB 2.0 host & USB 3.0 OTG
• Micro-SD slot
• 4 External GPIO
• WiFi 802.11bgn/ Bluetooth 4.0 with internal or external antennae (optional)
• HDMI 1.4 for secondary display
• eMMC storage 4GB
• Audio speaker connection
• Gigabit POE function or 10 to 36VDC power input
• 90 or 180 degree angled connectors
• Available with colorful bezels, customized color optional
• OS: Linux 3.x, Yocto, Ubuntu, Android 4.3 (Jelly Bean), Android 4.4 (KitKat)
• VESA 35 x 75 mount, bracket as separate option
Applications
• Home automation
• In vehicle entertainment
• Domotica
• Point of interest
• Infotainment
• Traffic control
