24-bit SAR A/D konverter med 145dB dynamikområde!
Linear Technology annoncerer 24-bit 2Msps SAR A/D-konverter med et dynamikområde på utrolige 145dB, hvilket kan udnyttes i forbindelse med udstyr til seismiske målinger samt i medicoudstyr med mere.

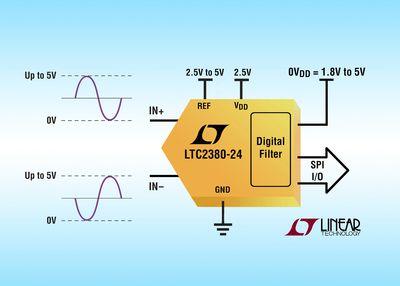

Linear Technology introduces the LTC2380-24, a breakthrough no latency 24-bit 2Msps successive approximation register (SAR) analog-to-digital converter (ADC). The LTC2380-24 features an integrated digital filter that averages 1 to 65,536 conversion results real time, dramatically improving the dynamic range from 101dB at 1.5Msps to 145dB at an output data rate of 30.5sps. This makes the LTC2380-24 ideal for seismic, medical and many other applications demanding high dynamic range.Using an on-chip digital filter to average conversion results, the LTC2380-24 eliminates the processing burden from the digital host, conserving digital resources and the associated power. Moreover, the LTC2380-24 allows results to be read out with a serial clock as low as 2MHz, easing interfacing to microprocessors, enabling use with slower devices. The LTC2380-24 achieves true 24-bit noise performance and features high DC accuracy with a maximum INL of ±3.5ppm while dissipating 28mW from a single 2.5V supply.
The LTC2380-24 is available in small MSOP-16 and 4mm × 3mm DFN-16 packages. It is drop-in compatible with the LTC2378-20 family of 1Msps 0.5ppm INL no latency SAR ADCs, allowing easy system upgrades to 24 bits. Samples and demo boards may be requested at www.linear.com/product/LTC2380-24.
